Data Acquisition System

DAS

DAS

Regular price $2,999.00 USD
Regular price Sale price $2,999.00 USD
Sale Sold out

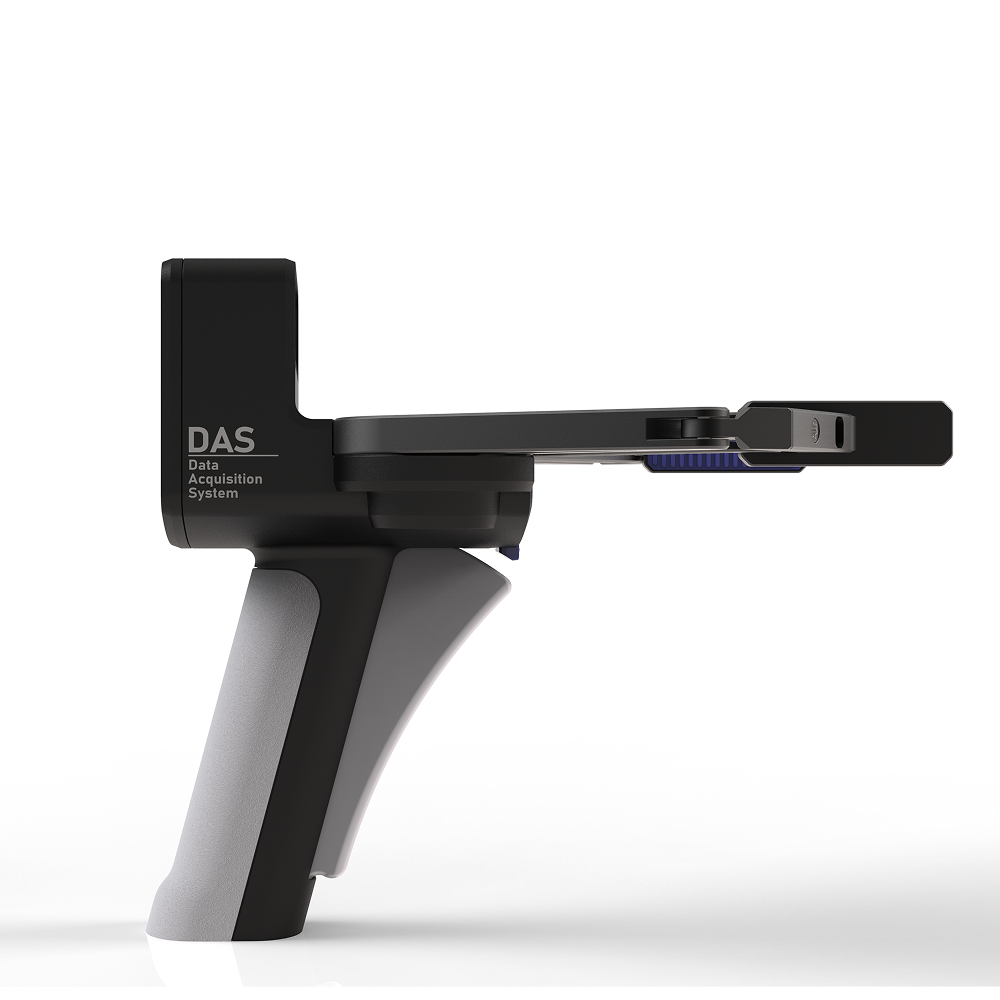

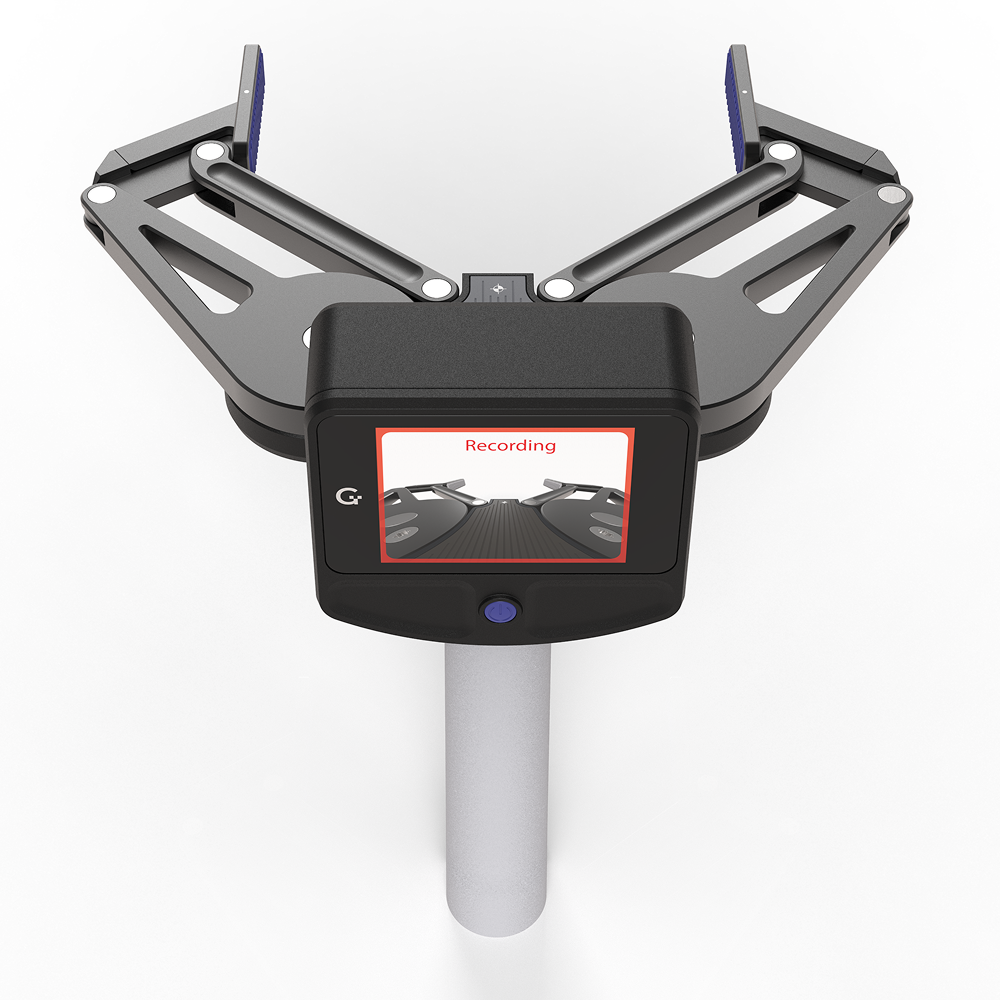

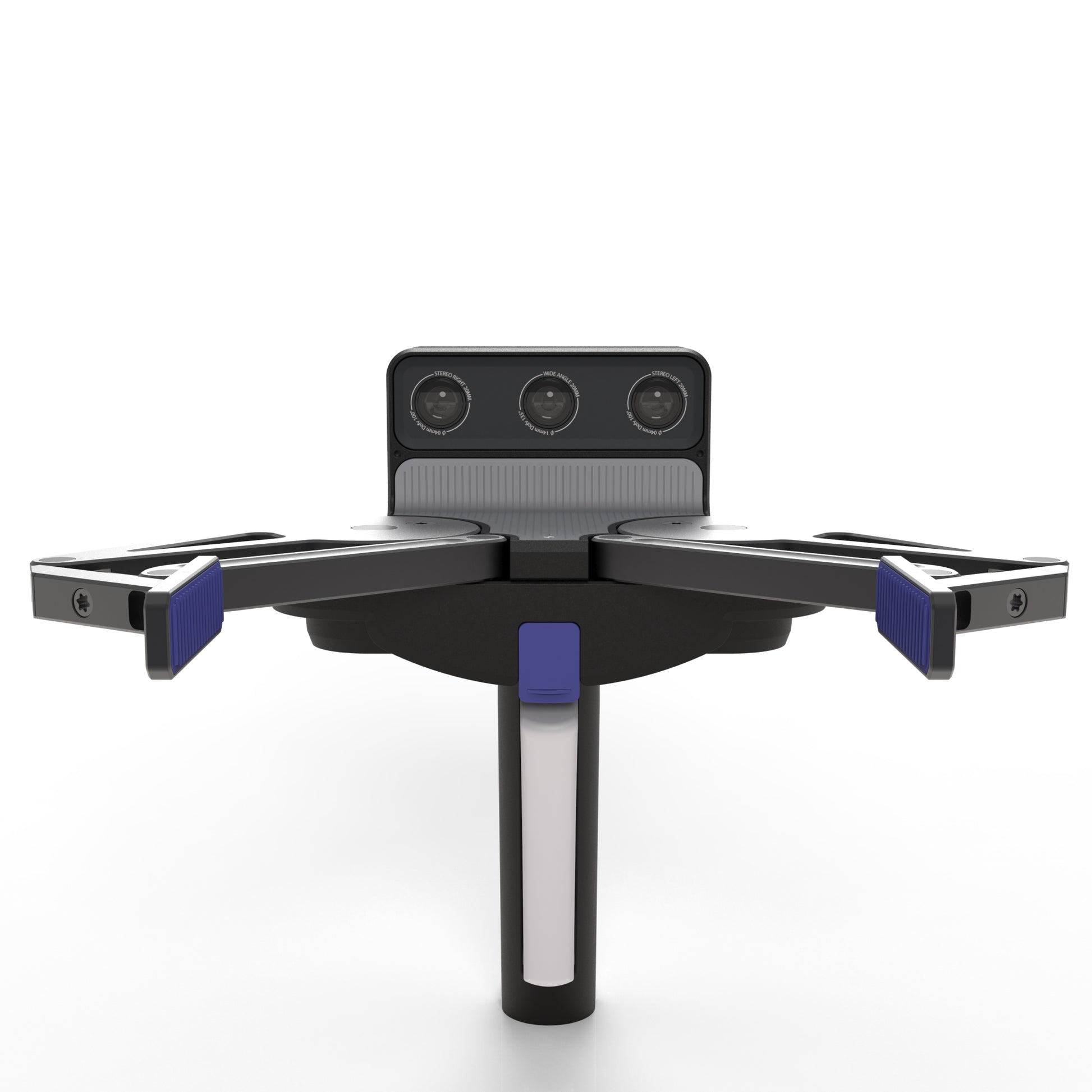

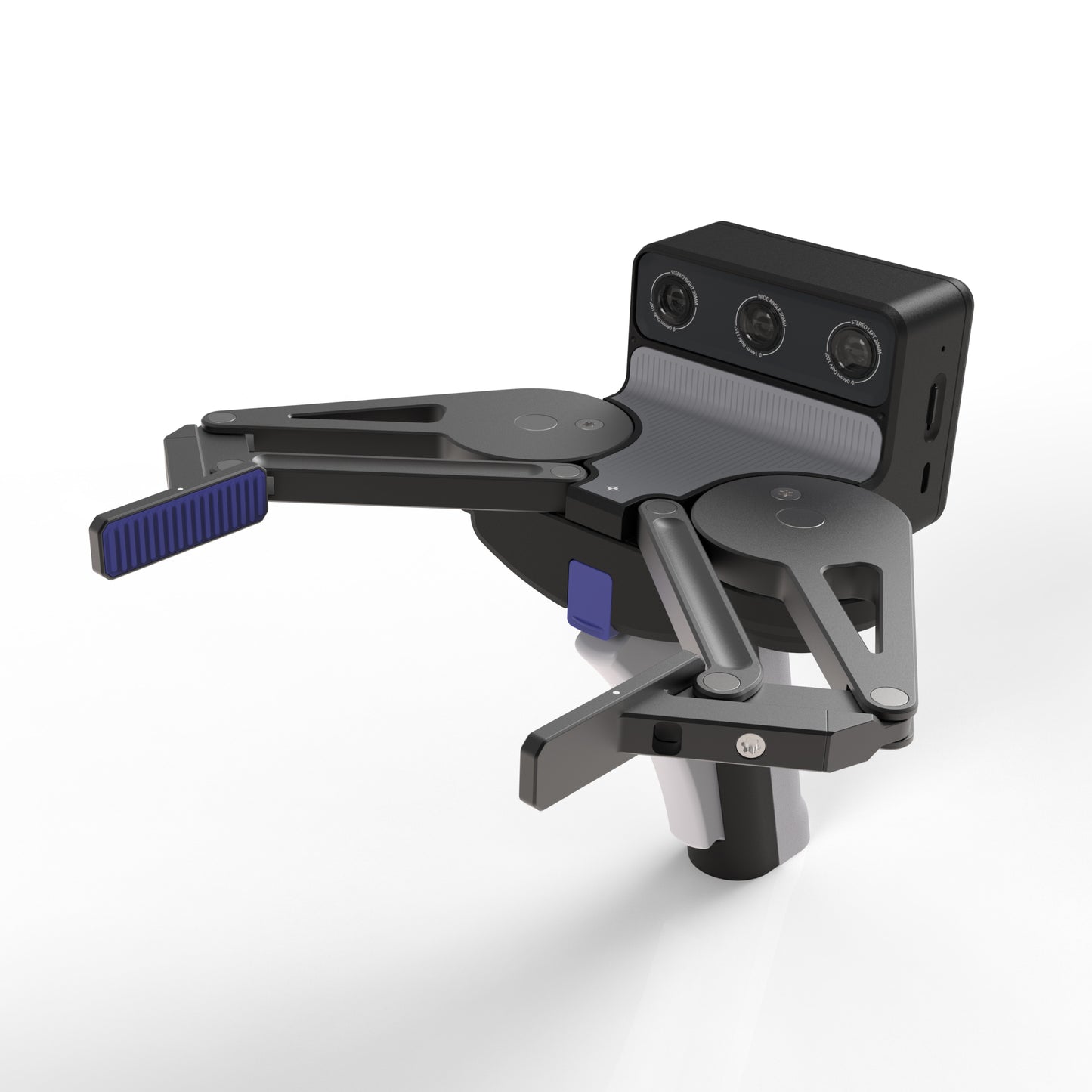

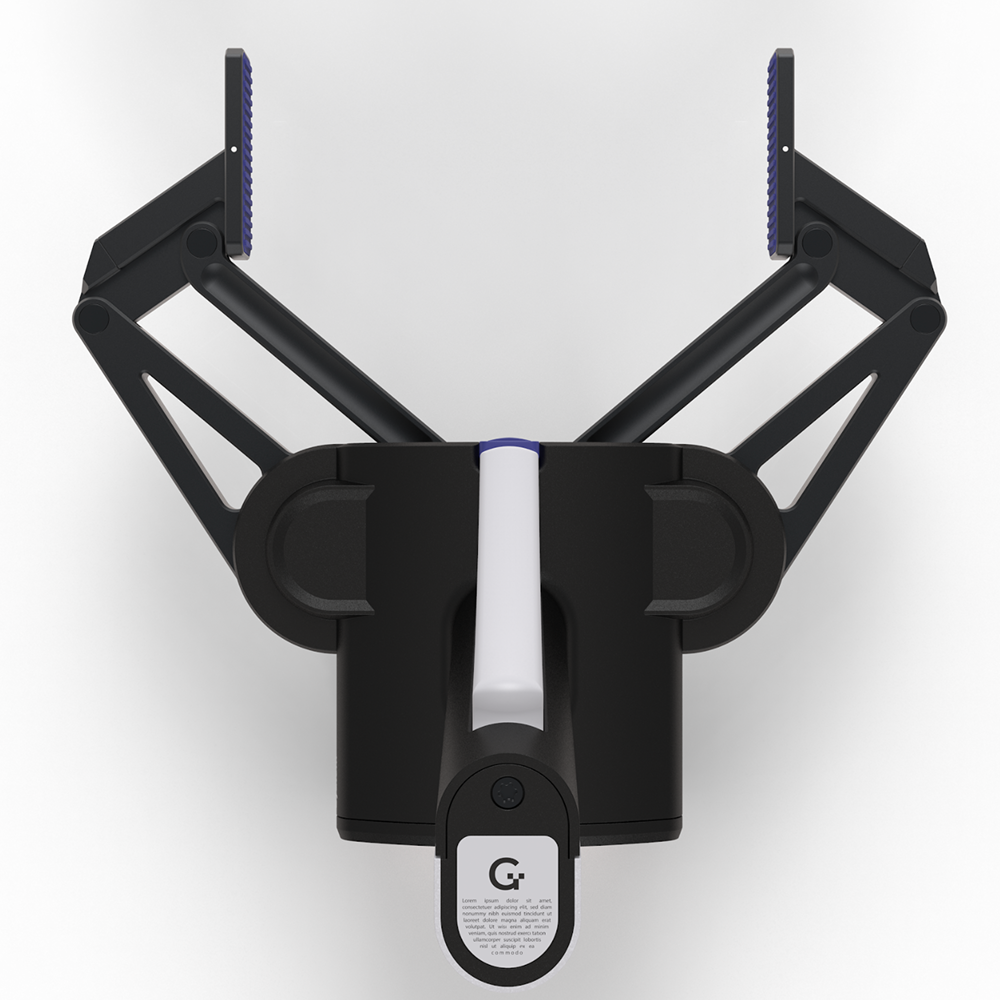

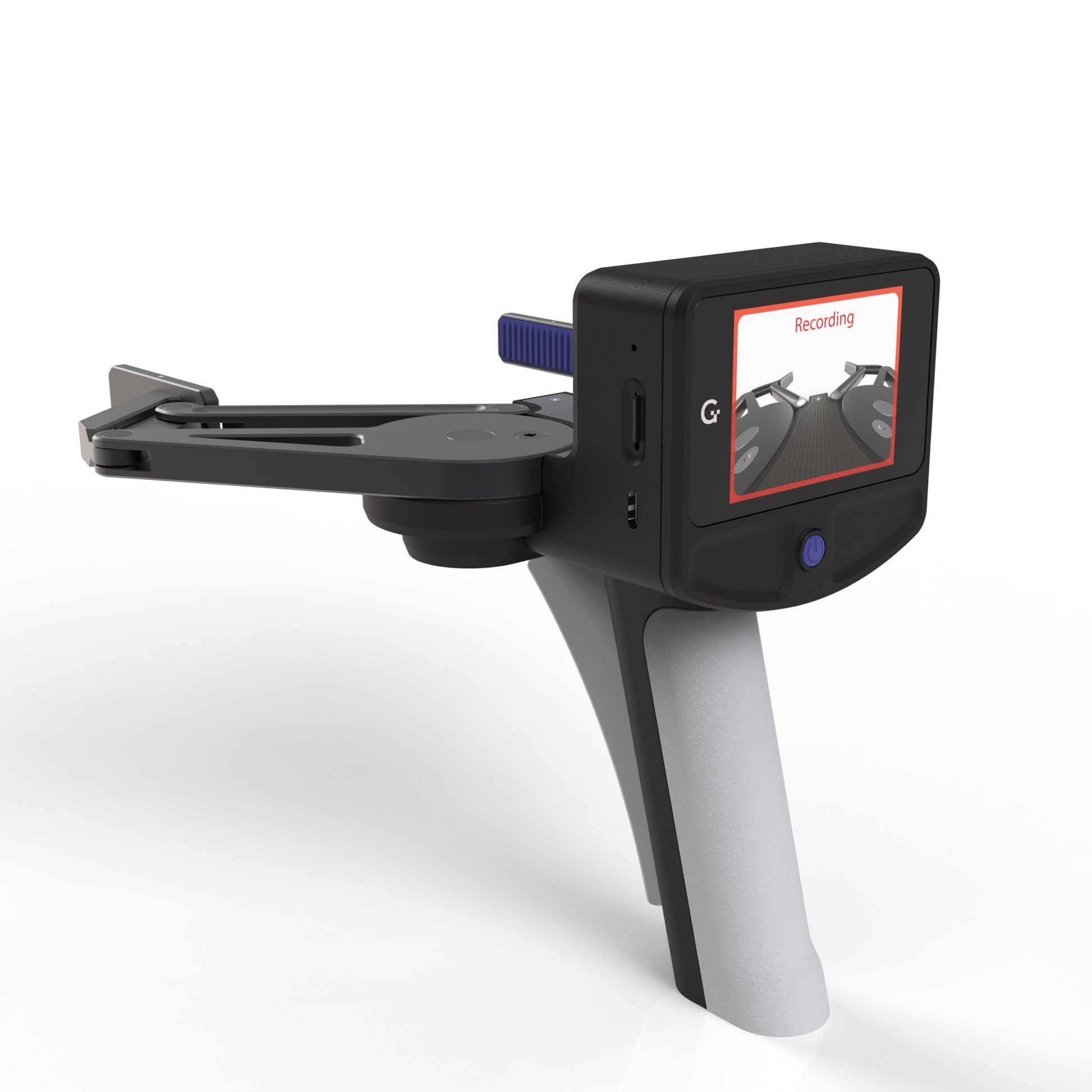

DAS is a universal embodied intelligence multimodal data acquisition system. Based on the advanced UMI design concept, it integrates multiple sensors such as vision, touch, and inertial sensors, and can efficiently collect multimodal data during the execution of robot tasks.

Color - Black
ADVANTAGES
Ready-to-Use: Callibration-free design, ready-to-use right out-of-the-box, in-the-wild.
Multimodal acquisition: Integrates multimodal sensors such as a trinocular camera, IMU, tactile sensors, and microphones.
Hardware-agnostic: Deployable across multiple robot platforms.

Bundle Products

View full details

Technical Specifications

Basic Information
Dimensions
210mm*196mm*195mm
Weight
450 g
Battery Life
3 hours
Storage
64 GB TF card
Communication
Wi-F, Type-C
Trajectory Reconstruction Accuracy
Sub-centimeter
Output Data Types
Triple-camera RGB images
Depth maps
IMU data
Spatial localization trajectory
Microphone audio
Tactile information
Gripper angle
Gripper pening distance
Gripper Information
Maximum Gripping Force
2 kg
Gripper Type
Dual-finger
Maximum Opening Width
100 mm
Output Frequency
100 Hz
Sensor Parameters
Triple-Camera Resolution
1920 x1080
Triple-Camera Frame Rate
30 Hz
Fisheye Field of View
>150°
Shutter Type
Global shutter
IMU Type
9-axis
IMU Sampling Rate
200 Hz
Tactile Pressure Range
7 g-2.5 kg
Tactile Array Spatial Resolution
1 mm

What’s in the Box

Interchangeable cripper Head x 1
Interchangeable cripper Head x 1
Type-C Data Cable × 1
Type-C Data Cable × 1
TF Card(64GB)x1
TF Card(64GB)x1
Dock × 1
Dock × 1
USB3.0 TF Card Reader
USB3.0 TF Card Reader
